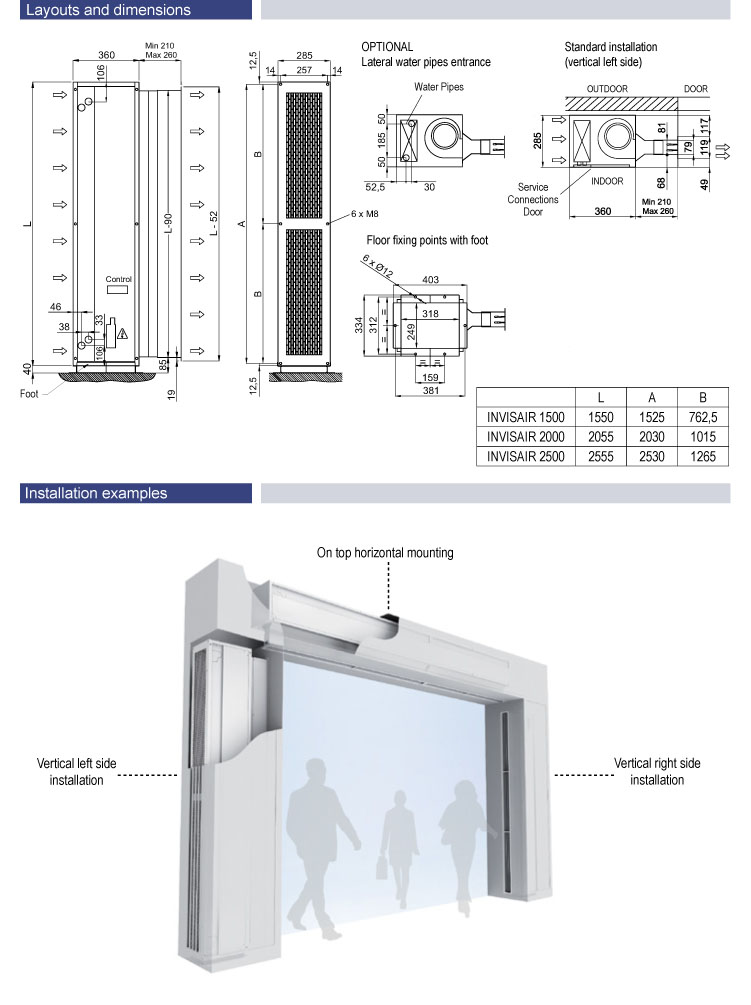

• Specially designed for applications where the body of the air curtain is to be
installed inside a column or bulkhead for architectural reasons. It can be vertically
or horizontally mounted.
• Self-supporting casing construction made of galvanized steel plate, finished in
structural epoxy-polyester painting white colour RAL9016 as standard. Other
colours or stainless steel are available on request.

Categories: , Tag:

Recessed Air Curtains For Commercial And Industrial Doors
• Specially designed for applications where the body of the air curtain is to be
installed inside a column or bulkhead for architectural reasons. It can be vertically
or horizontally mounted.
• Self-supporting casing construction made of galvanized steel plate, finished in
structural epoxy-polyester painting white colour RAL9016 as standard. Other
colours or stainless steel are available on request.
• The air flow of Invisair follows a straight line from the air inlet grille to the to the
discharge. Inlet area inside a bulkhead or column should be designed with suita-
ble grille provided by others.
• Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each
side.
• Double-inlet centrifugal fans driven by an external rotor motor and low noise level.
5-speed selector. “EC” models with very low consumption efficient fans.
• “P” type with water heated coil. “E” type with electrical shielded elements, three
stages with integrated regulation. “A” type without heating, air only. Optional “DX”
with direct expansion coil.
• Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optio-
nal: Clever control (programmable, automatic, intelligent, energy saving, Modbus
RTU for BMS…).
